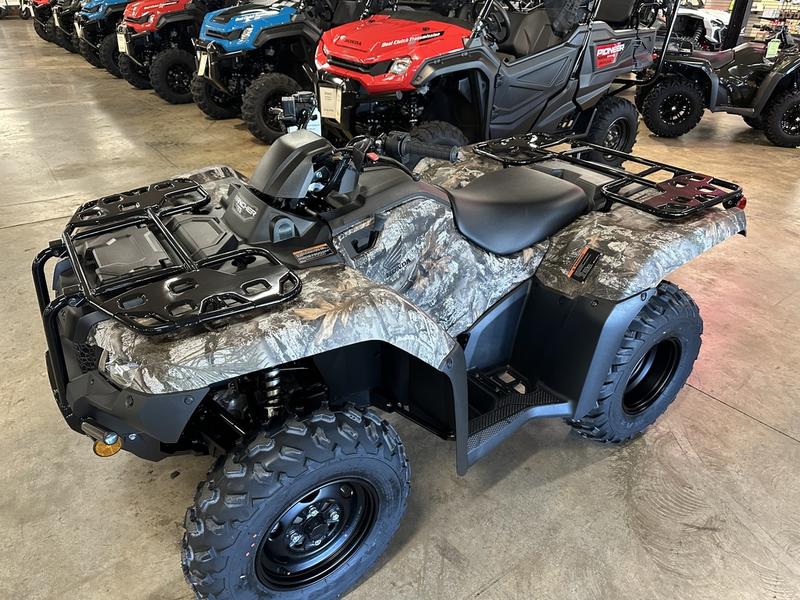

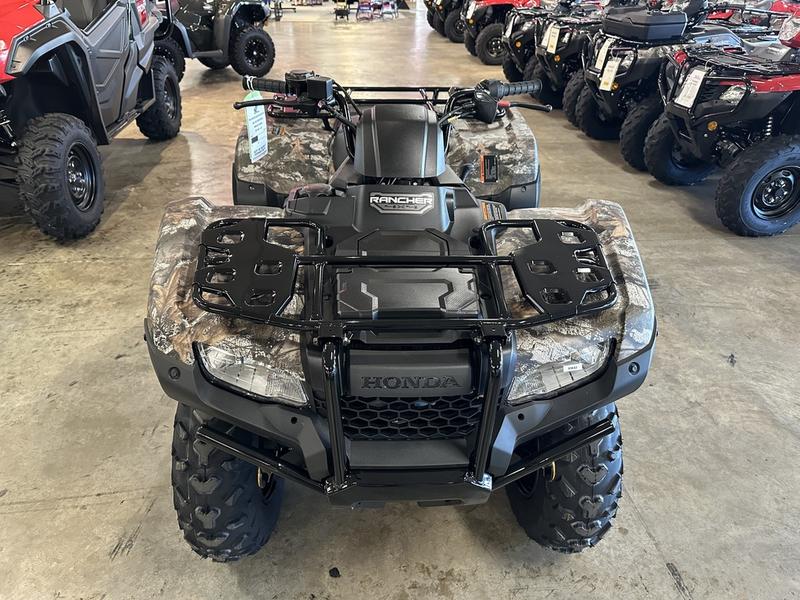

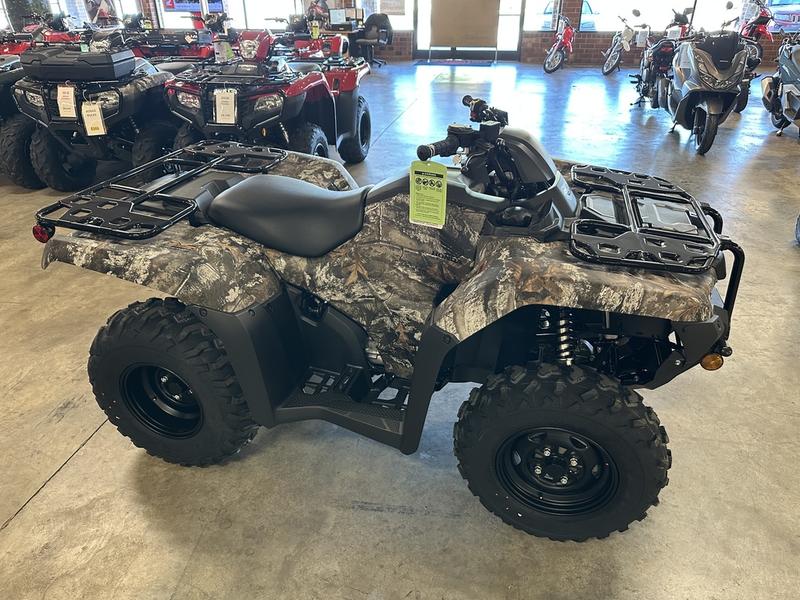

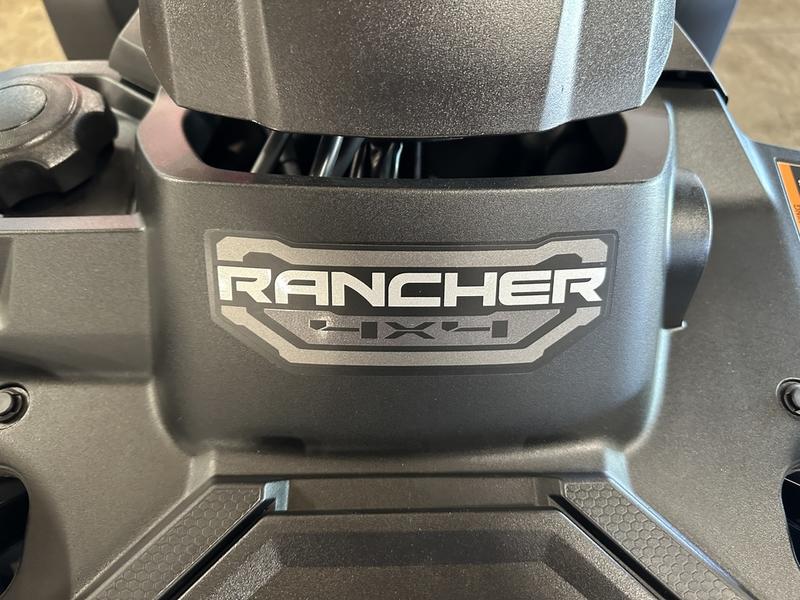

2026 Honda® FourTrax Rancher 4×4 TrueTimber® Atera Camo

Toughness comes standard

The FourTrax Rancher lineup offers unmatched durability, toughness, and reliability. With four versatile trims, there’s a perfect fit for any job or adventure. Built to perform and designed to last, the Rancher delivers excellence without compromise.

Features may include:

Performance

• Programmed fuel injection

With a 34mm throttle body, 12-hole injector, and an oxygen sensor, the Programmed Fuel Injection (PGM-FI) promptly adjusts fuel mapping to ensure smooth operation, lower emissions, and enhanced fuel efficiency.

Handling

• Disc brakes

The Rancher model with Independent Rear Suspension offers disc brakes on all four corners for excellent stopping performance.

Engineering

• Shaft drive

The shaft drive is clean, low-maintenance, and efficient, making it the perfect choice for high-mileage riders. It eliminates the need for lubrication or adjustment while on the trail.

Style

• Make it yours

We provide more than 20 genuine Honda accessories to customize your new Rancher. These include upgrades for protection, comfort, and convenience. Additionally, we offer several items from our Honda Pro-Connect™ line of cargo accessories, which can be easily attached or detached without the need for tools.

Engine
Engine Type:    Longitudinally mounted liquid-cooled single-cylinder four-stroke
Displacement:    420cc
Cooling System:    Liquid-cooled
Bore:                      86.5mm
Stroke:                71.5mm
Compression Ratio:    9.9:1
Valve train:               OHV; two valves per cylinder
Induction:                  Programmed Fuel Injection (PGM-FI); 34mm throttle body
Starter:                      Electric with optional auxiliary recoil
Emissions:                Meets current EPA and CARB (California) off-road emissions standards.

Drivetrain
Transmission:          Five-speed manual with reverse
Driveline:                Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential
Clutch:                    Automatic

Suspension
Front Suspension:        Independent double-wishbone
Front Travel (in./cm0):      6.7-in
Rear Suspension:           Swingarm with single shock
Rear Travel (in./cm.):     6.7-in

Brakes
Front braking system:      Dual 190mm discs
Rear braking system:        160mm sealed mechanical drum

Wheels & Tires
Front Tire:     24 x 8-12
Rear Tire:       24 x 10-11

Capacities
Fuel Capacity:   3.9 gallons, including 1.3-gallon reserve

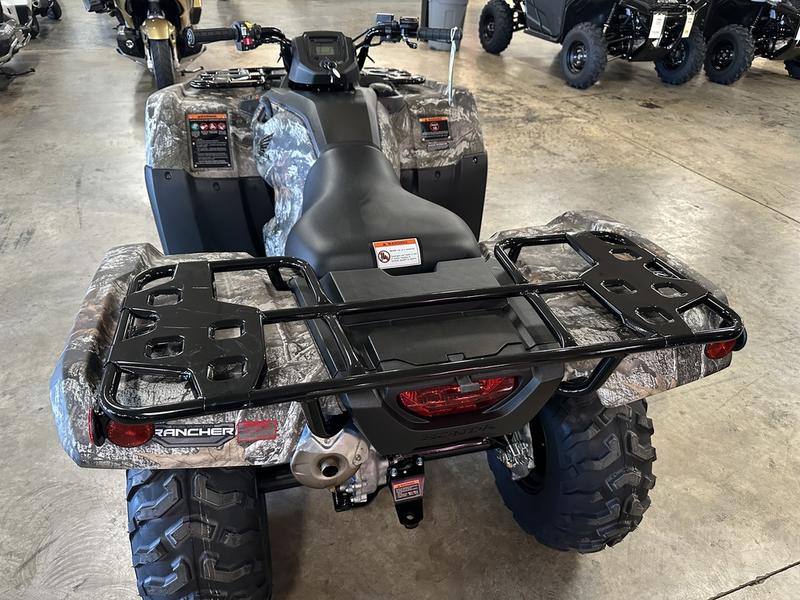

Rack capacity, front:    66 pounds
Rack capacity, rear:     133 pounds

Weights
Curb Weight:    615 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Other

Color
Colors:        TrueTimber® Atera Camo

Warranty
Warranty:        One Year: One-year transferable limited warranty
Protection Plan:      Optional Extended: Extended coverage available with a HondaCare®?Protection Plan
